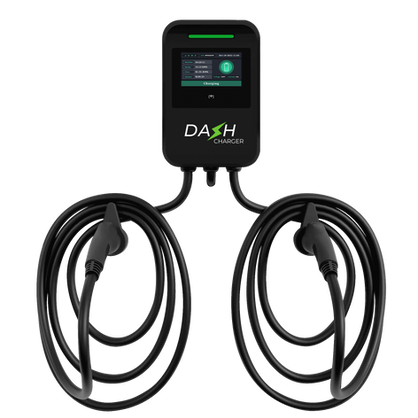

TALC Series

Compact design with single and double connector options make this model perfect for light commercial use.

Charger Features

Charging Mode:

Level 2

Vehicle Connection:

SAE J1772 or NACS plug(s) with 18' charging cable(s), 25' optional

Power Output:

19.2kW power sharing

Mounting:

Wall or pedestal

Interface:

Digital screen and LED indicator light

Load Management:

via OCPP platform

Brochure

Charger Network and Communication

Network:

Ethernet, WiFi, 3G/4G Optional

User Authentication:

App or RFID

Back End Protocol:

OCPP 1.6J

Software Update:

Over the air (OTA)

Design

Environmental Rating:

NEMA Type3R(IP66)/IK10

Dimensions (HxWxD) (mm):

451 x 313 x 157

Weight:

7.7 (10 dual plug)

Ambient Temperature:

-30° c ～ +50° c

Ambient Humidity:

5% to 95%

Shell Material:

PC, Glass

Electrical Details

Power Supply:

Rated Current Settings (A):

Power Wiring:

Ground Fault Protection:

Over/undervoltage Protection:

Overcurrent Protection:

Operating Altitude:

Single phase: 208 V / 240 V AC, 60 Hz

32, 40, 48

3 Wire, L1, L2 plus ground

Yes

≤ 2000m

Charger Certifications

UL 2594:2022 Ed.3, CSA C22.2#280:2022 Ed.3
